Modular Ping

More photos can be viewed on this page.

Introduction

Dating all the way back to 1972, Atari's Pong was the first video game popular enough to become a household name (though contrary to popular belief, it certainly wasn't the first video game ever produced!).

Atari co-founders Nolan Bushnell and Ted Dabney had already developed a video arcade game the previous year, known as Computer Space. Despite being more technically advanced than Pong, it didn't achieve the success they were hoping for - the rules of the game weren't obvious, and players had to read the instructions to understand how to play.

They quickly realized that arcade-goers preferred more intuitive video games that were easy to pick up and play. In May 1972, Nolan visited a demonstration of the soon-to-be-released Magnavox Odyssey, an early consumer-grade home game console based largely on analog circuitry. There, he realized that its simple "Tennis" game could be improved if it was implemented with the same digital logic used in Computer Space.

The task of developing Pong was given to new hire Allan Alcorn, who was instructed to create a digital tennis video game with counters to keep track of the score.

In the early 70's, microprocessors were expensive and rudimentary. Therefore, Pong was designed entirely with discrete TTL logic! It's a video game implemented with no software whatsoever, a concept that sounds unthinkable nowadays.

Upon completing the basic game, Allan added some extra features to make the game more interesting - the ball would speed up if players could keep up a volley without missing, and would bounce back at a variable angle depending on where the paddles hit it.

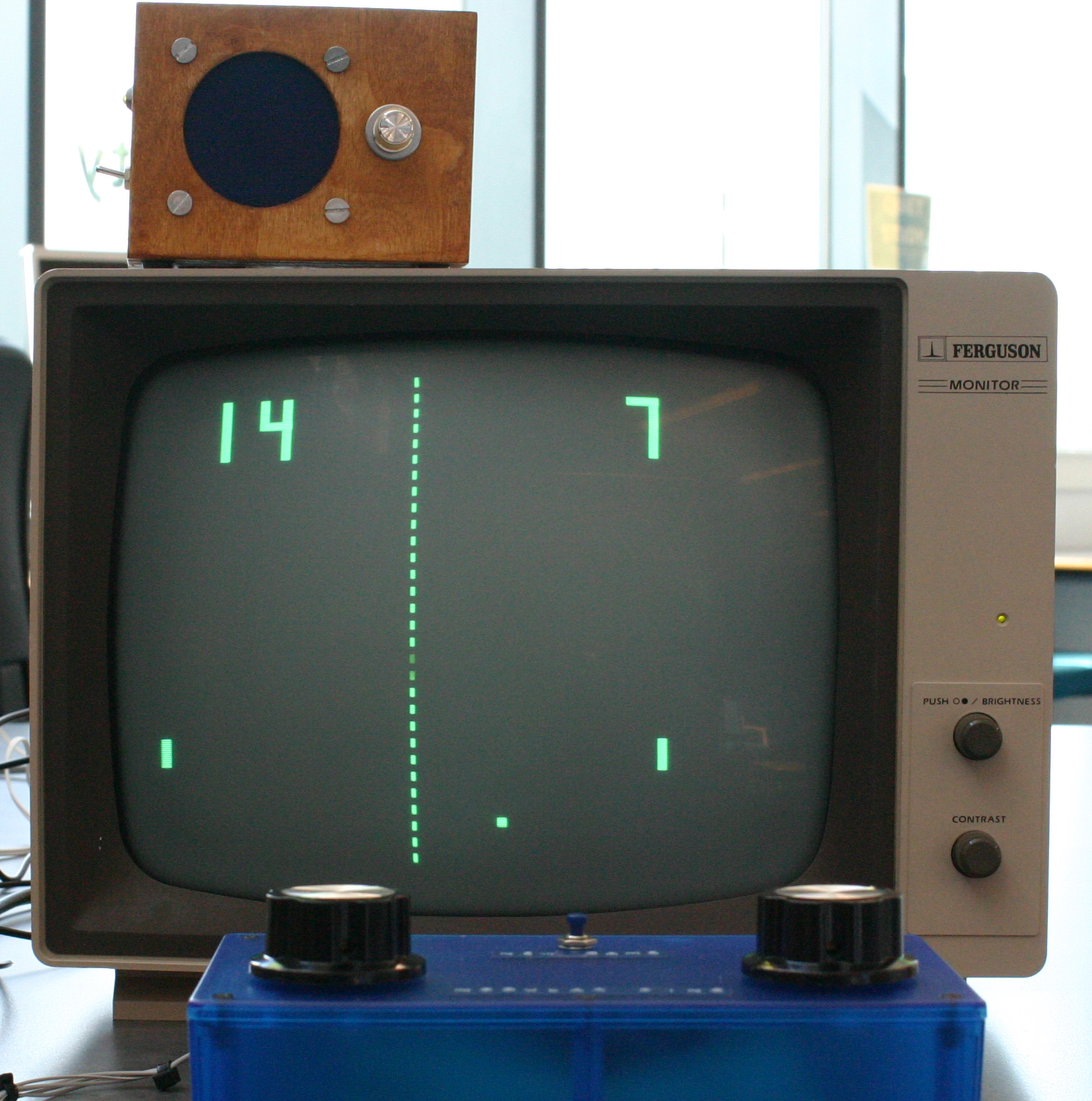

One of the last features added was sound. Timing signals that were already in the circuit were fed through a loudspeaker to create the characteristic sounds that inspired the name "Pong". (or "Ping" in the case of my replica, since Atari still holds the rights to the name "Pong".)

A few years after the development of Pong, large-scale integration would allow a simplified version of the game logic to be crammed into a single custom IC. However, these later home versions of Pong usually simplified the ball velocity logic in comparison to the original arcade game.

In the years following the development of Pong, many other arcade games would be implemented entirely out of TTL logic. The introduction of the Intel 8080 CPU in 1974 gradually brought an end to this era of arcade gaming in favor of microprocessor-based games, and by 1980, production of TTL arcade games was a thing of the past.

Technical Description

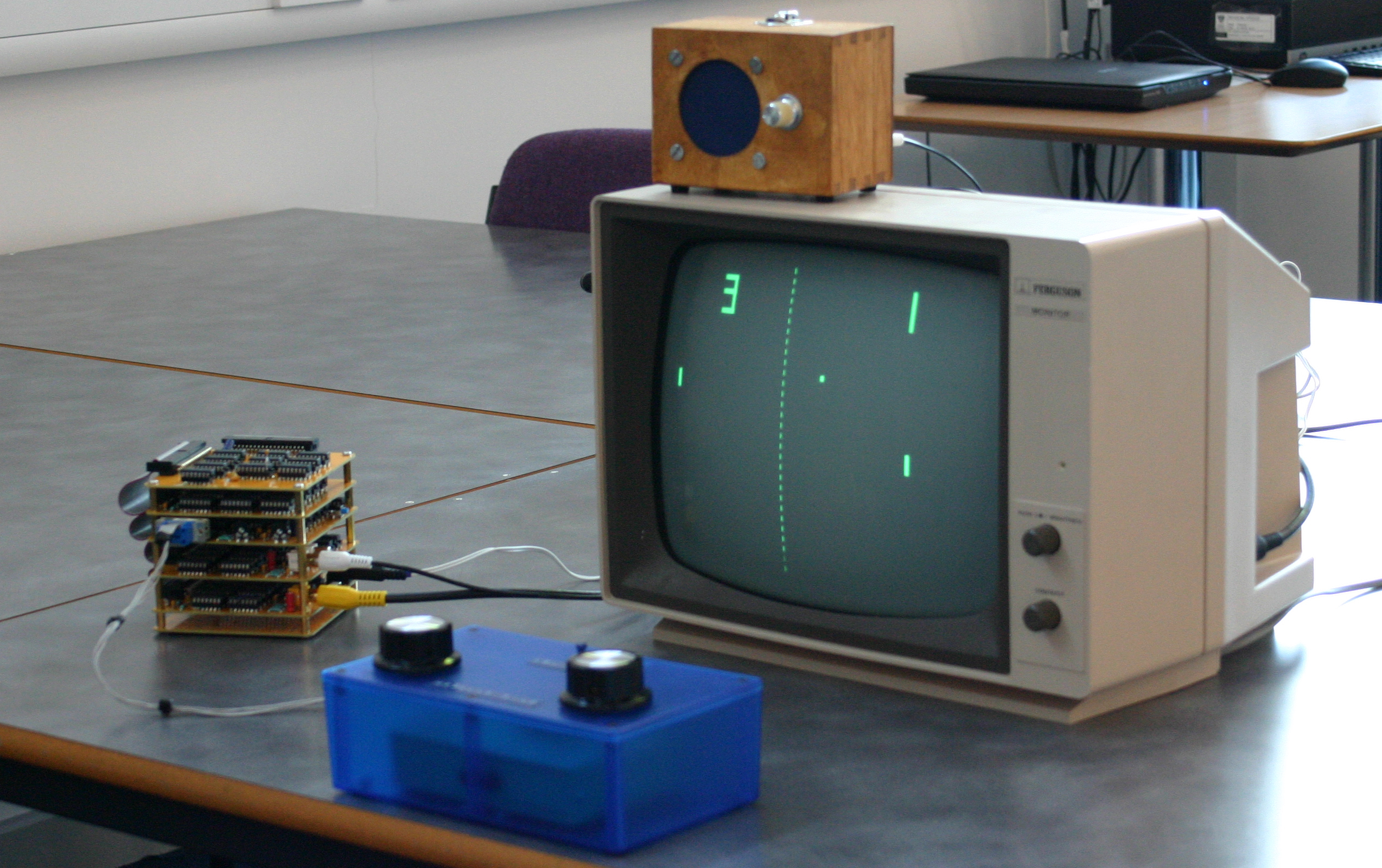

In Modular Ping, the circuitry of Pong has been separated into a "base system" of five PCBs.

Power, Sync, Video: The 5V power regulator/supply, synchronization generator, and video output.
Paddles, Game Control: Determines paddle position and handles game logic. (Collision detection, game reset, demo mode, etc.)
Score: Keeps track of both players' score in binary-coded decimal (BCD) format, which is converted into human-readable numerals by a 7-segment decoder IC.
Vertical Ball, Sound: Controls the ball's vertical position, direction and speed, determining the angle at which the ball should return upon collision with the bats. Generates sound effects upon collisions and misses.
Horizontal Ball: Controls the ball's horizontal position, direction and speed. Increases the ball's horizontal speed if players are able to maintain a volley without missing the ball for long enough.

The original Pong circuit contained some minor bugs which aren't normally noticeable during gameplay. These bugs have been documented in two articles (here and here) by Dr. Hugo R. Holden, who has developed modifications to fix the errors without using any extra circuitry. I've implemented some of these fixes in Modular Ping, though some couldn't be implemented without increasing the number of components, since unused logic can only be connected "locally" on its respective PCB.

The following bugs have been corrected in Modular Ping:

The "Ghost in the Machine": The vertical speed of the ball is determined upon collision with either bat by a 3-bit binary value. In the original circuit, the least significant bit was accidentally switched between players, resulting in the ball's rebound angle being partially determined by the opposite bat.
Ball trapped in blanking: In extremely rare cases, it's possible for the ball to become trapped in the vertical blanking interval. In an unmodified original system, this would only occur rarely upon switching the machine on. It can only happen during gameplay if the range of the bats is modified to span the entire screen (a currently unimplemented bugfix I may add in a later revision).
Weak net: At some point, the 7493 counter ICs used in the sync generator were phased out in favor of the faster 7493A counter. The slight difference in propagation speed can affect the width of the net, potentially reducing it to the point that it's barely visible. By triggering the net flip-flop with a different signal, the net remains the same width regardless of the counter variant used.

The PCBs connect to each other using two 40-pin IDC ribbon cables. You'll have to make these cables yourself, since short cables with five connectors on them are difficult to find prefabricated. 40-pin IDC connectors can be crimped with an ordinary vise or a specialized IDC crimping tool (available online for around $15-20).

The pinout of these connectors (which I've named PingBus A and B) can be found in the schematics, available below in the "Downloads" section.

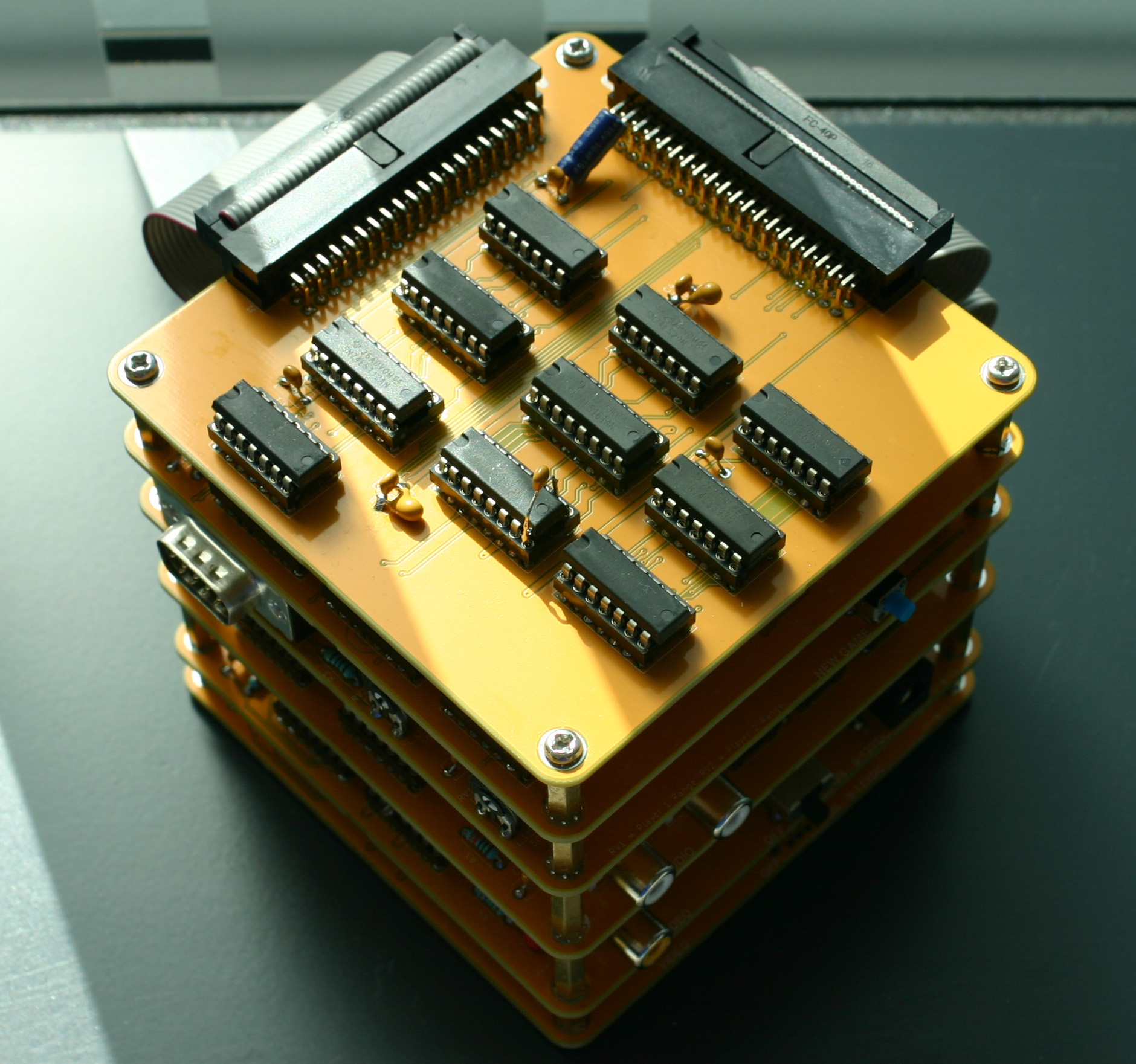

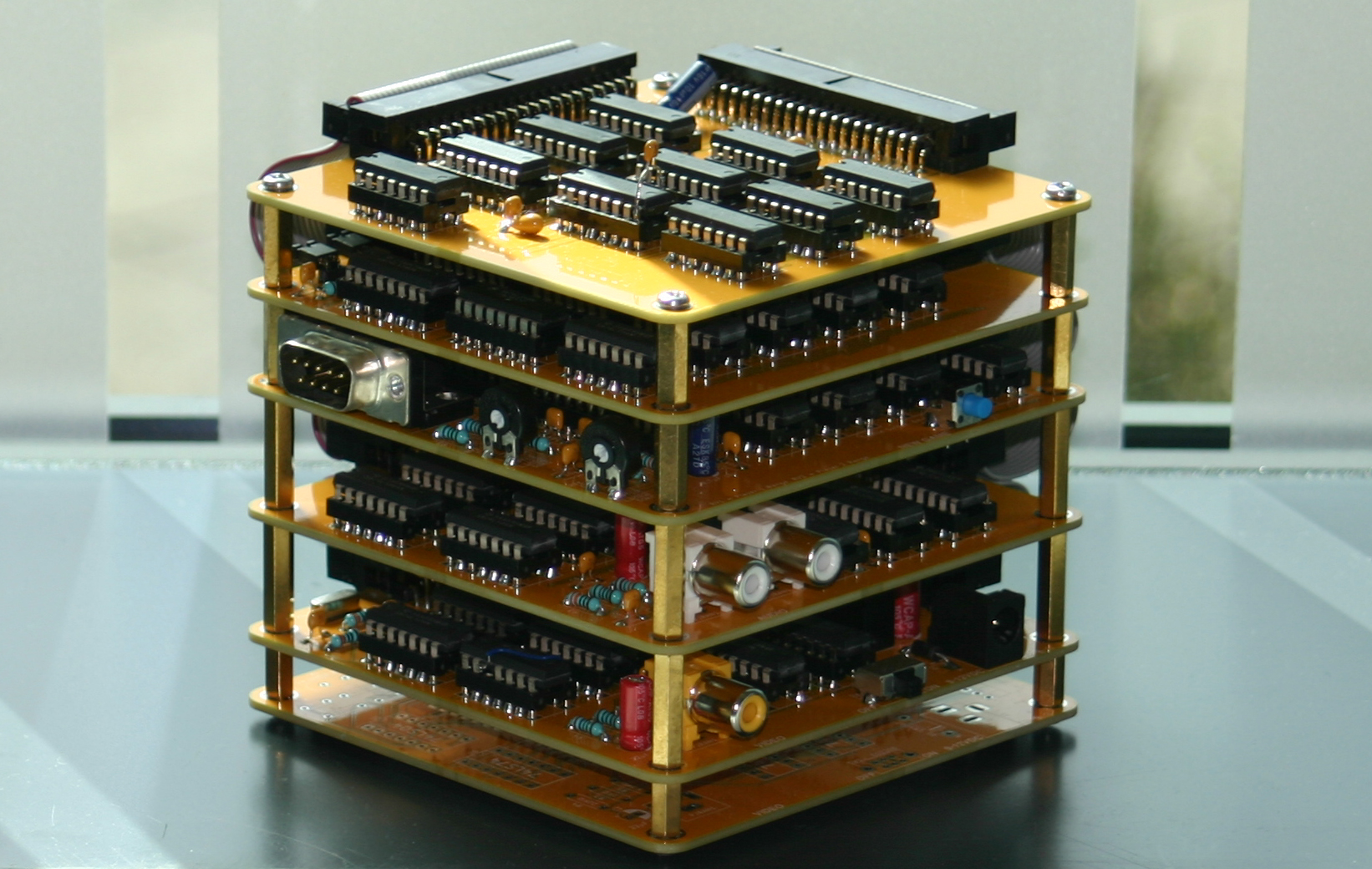

The boards are designed to stack on top of each other with standard M3 screws and standoffs. Nylon fixtures can be used, but I recommend using metal ones to improve grounding between boards.

In total, the base system requires 63 ICs. This is slightly less than the original Pong circuit, due to the usage of the 74LS393, 74LS390 and NE556N - dual versions of the 74LS93, 74LS90 and NE555N, respectively.

The number of ICs which are no longer produced has also been reduced significantly. The only two components that aren't available directly from Mouser/Digikey are the 74LS48 used for decoding the score and the NE556N used to generate the delay for each paddle. Due to the layout of the circuit, different NE556 variants will give different results, potentially causing incorrect paddle range or non-linear control. For correct operation, look for an NE556N produced by Signetics.

In the future, I may try designing an alternative paddle circuit that uses a modern replacement for the NE556N, such as the 74LS221.

Changelog

Revision 0:
Initial prototype.

Upon switching the system on, the ball would only move vertically. After a few minutes of operation, the ball would incomprehensibly start moving horizontally as it should. I figured out that this could be corrected by connecting a 220pF capacitor between /H_BLANK and GND. I assume this bug must be caused by the difference in switching speed of modern 74LSxx logic compared to the 74xx logic used in the original system.
I attempted to improve the timing of the /H_SYNC signal using a spare XOR gate, but this had the unintended effect of reducing the size of the paddles.

Revision 1:

220pF capacitor added to /H_BLANK signal, improving reliability of horizontal ball movement.
Clock input of U6A flip-flop on sync/video PCB corrected to H_RESET. The redrawn schematic I was following had it incorrectly labeled as CLK.
/H_SYNC signal generator reverted to original arcade circuit configuration.
100μF capacitors added between VCC and GND on each PCB to improve supply voltage stability. These aren't really necessary, but I figured it's better to have the option of adding them if desired.

Downloads

Due to the large number of PCBs, the "base set" of boards required to build the original game have been combined into a single ZIP archive.

Interactive Bill of Materials - Power, Sync, Video
HTML document, 373 KB

Interactive Bill of Materials - Paddles, Game Control
HTML document, 387 KB

Interactive Bill of Materials - Score
HTML document, 338 KB

Interactive Bill of Materials - Vertical Ball, Sound
HTML document, 359 KB

Interactive Bill of Materials - Horizontal Ball
HTML document, 307 KB

Schematic - Power, Sync, Video
PDF document, 512 KB

Schematic - Paddles, Game Control
PDF document, 608 KB

Schematic - Score
PDF document, 509 KB

Schematic - Vertical Ball, Sound
PDF document, 459 KB

Schematic - Horizontal Ball
PDF document, 429 KB

PCB Gerbers - Base System
ZIP archive, 1.63 MB - Production files for each PCB in the base system.

KiCad Files - Base System
ZIP archive, 3.78 MB - Useful if you want to make modifications to the PCBs. Made with KiCad 9.

Custom Fonts
ZIP archive, 131 KB - Custom fonts used for the KiCad files. Only needed if you want to modify these files.

Other Schematics
ZIP archive, 12.8 MB - Various schematics and technical descriptions of the original Pong circuit from other sources. Note that there are several errors in "REDRAWN_PongSchematic.pdf".

Original Schematics
ZIP archive, 13.5 MB - Atari's original schematics for revision E of Pong in the highest quality available. Taken from the 1974 Atari Operator's Handbook, the rest of which is available here. Note that pins 1 and 10 of gate A6 are incorrectly switched - this caused a minor bug in the original arcade circuit.

Thanks to:
Willy Higginbotham: Created the first electronic tennis game in 1958, which was viewed on an oscilloscope.

Ralph Baer: Designed the first video game that worked with a household TV set. His invention would later become the Magnavox Odyssey, the first mass-produced video game console and the inspiration for Pong.

Allan Alcorn, Nolan Bushnell and Ted Dabney: Developed the arcade version of Pong.

Dr. Hugo R. Holden: Reverse engineered the functionality of Pong, creating an excellent explanation of how each section of the system works.

Paul Falstad: Created a logic simulation showing how each section of Pong works.

David Winter: Extensively documented the early history of video games (including the many variants of Pong) on pong-story.com.
